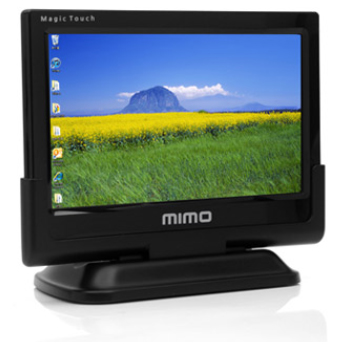

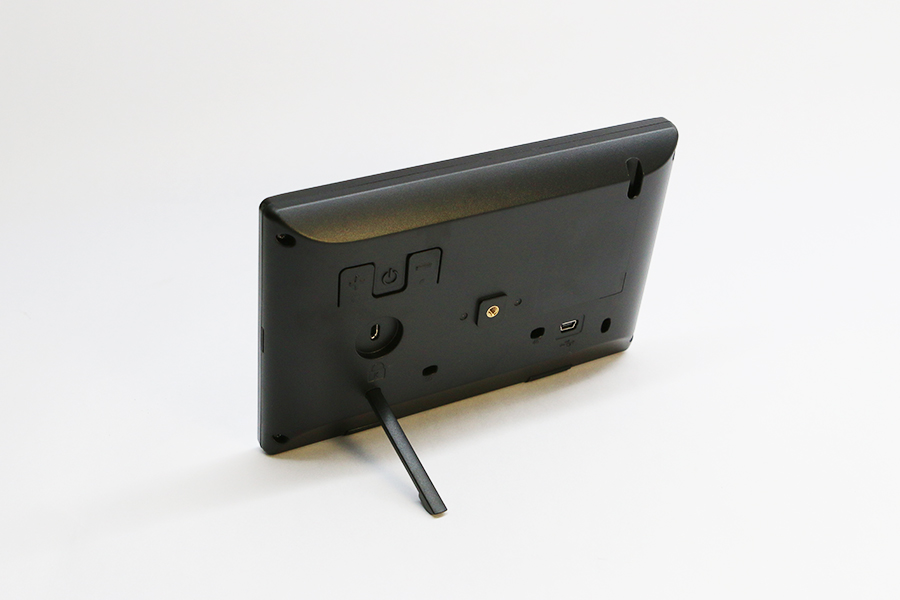

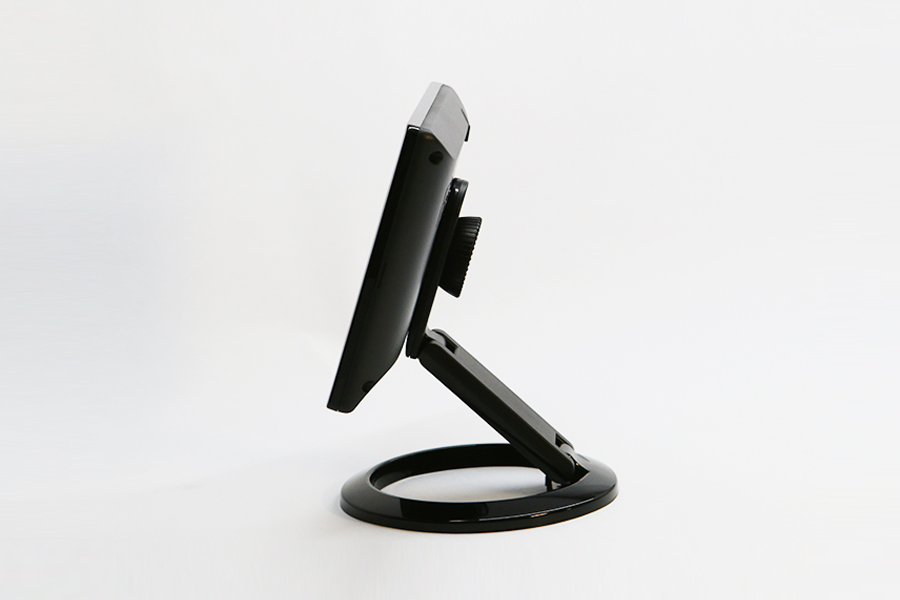

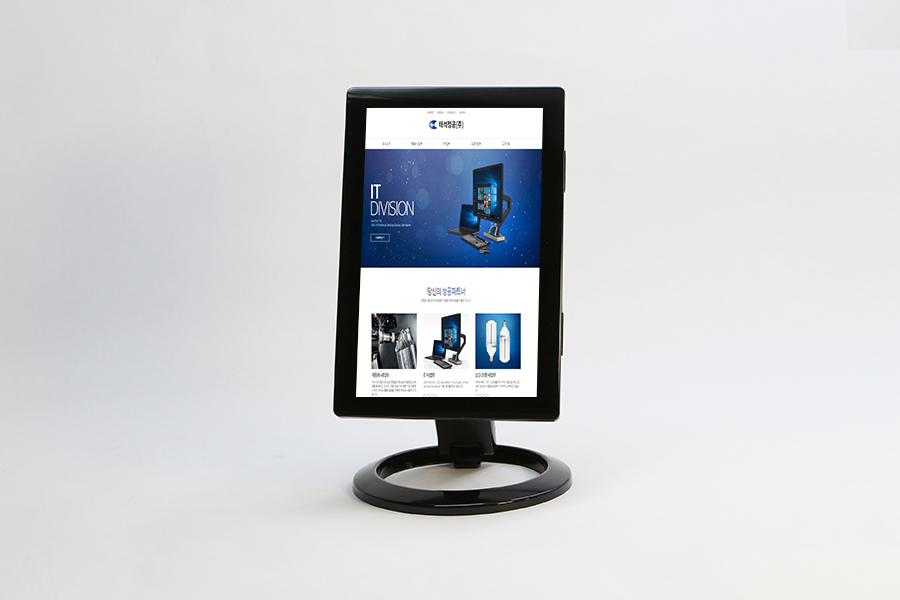

7inch USB Monitor
동영상
문서
웹
포토
멀티 모니터링
메신저
이메일
Technical Specifications
| Model | i07BS | i07TS |
|---|---|---|
| USB Monitor | O | O |
| Resistive Touch screen | X | O |
| Screen diagonal | 7inch wide | |
| Display Resolution | 800 x 480(WVGA) | |
| Brightness | 350cd/㎡ | |
| Contrast Ratio | 500:1 | |
| Response time | 25ms | |
| Signal Input | USB Mini 5-pin B type | |
| Connections | High Speed USB2.0 | |
| Power Consumption | USB Power(5V),3.3~4.9W | |
Monitor Characteristics
Compatible Models & Accesories
Flex Mounting Aram
VESA Bracket
USB Cable-S (3m, 4m, 5m)
USB Cable-R (3m, 4m, 5m)

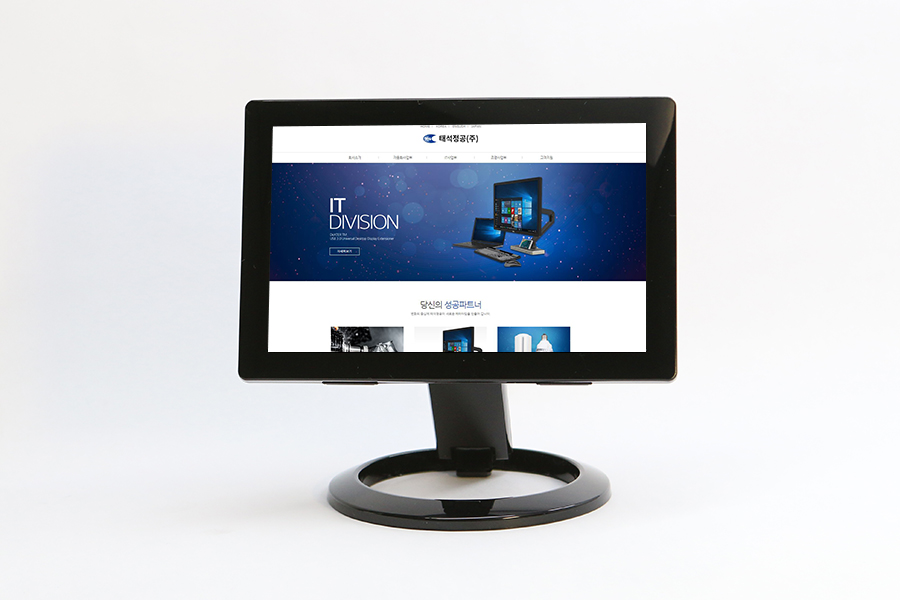

10.1inch USB Monitor
동영상
문서
웹
포토
멀티 모니터링
메신저
이메일
Technical Specifications
| Model | i101BS | i101RT | i101CT |
|---|---|---|---|
| USB Monitor | O | O | O |
| Resistive Touch screen | X | O | X |
| Capacitive Touch screen | X | X | O |
| Screen diagonal | 10.1inch wide | ||
| Display Resolution | 1024 x 600(SVGA) | ||
| Brightness | 200cd/㎡ | ||
| Contrast Ratio | 500:1 | ||
| Response time | 16ms | ||
| Signal Input | USB Mini 5-pin B type | ||
| Connections | High Speed USB2.0 | ||
| Power Consumption | USB Power(5V),3.3~4.9W | ||
Monitor Characteristics
Compatible Models & Accesories
Flex Mounting Aram
VESA Bracket
USB Cable-S (3m, 4m, 5m)
USB Cable-R (3m, 4m, 5m)

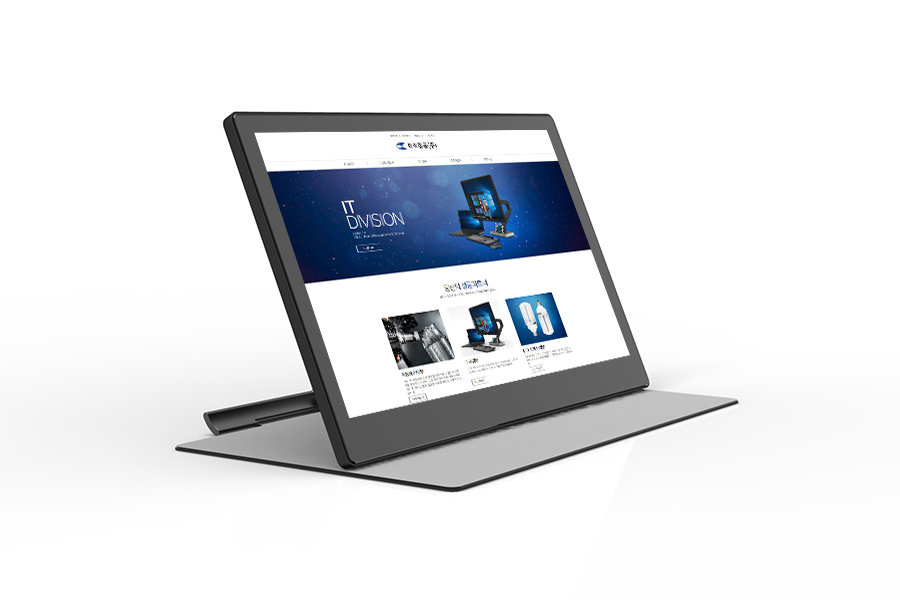

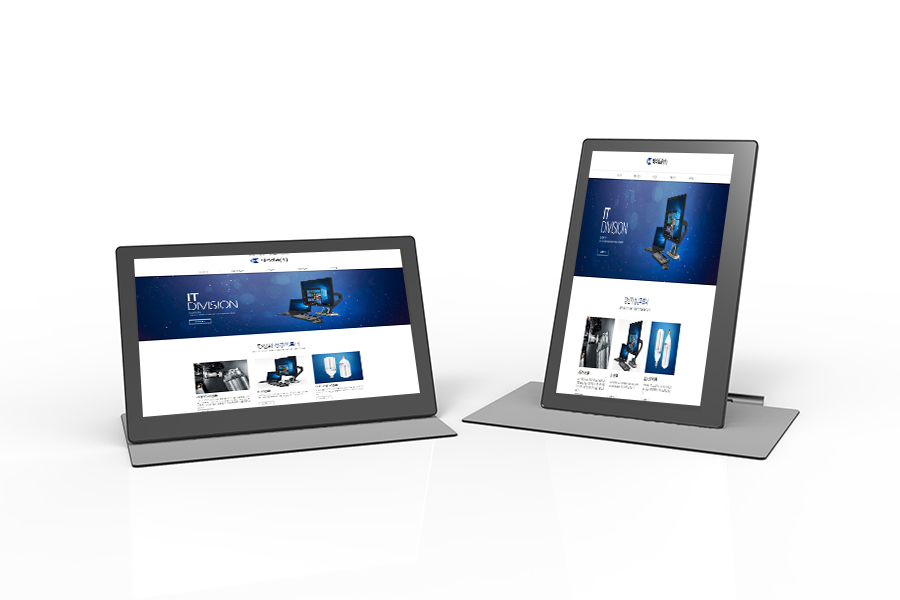

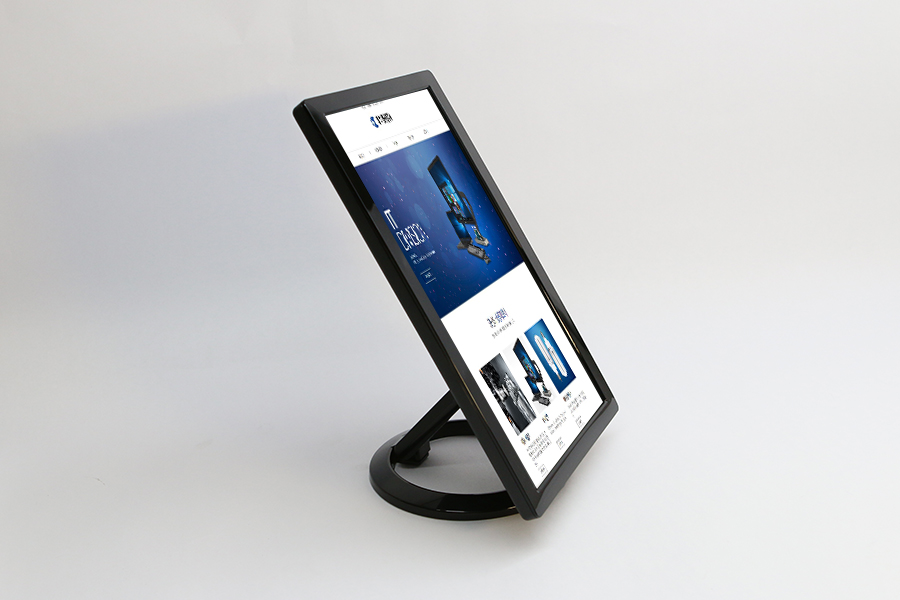

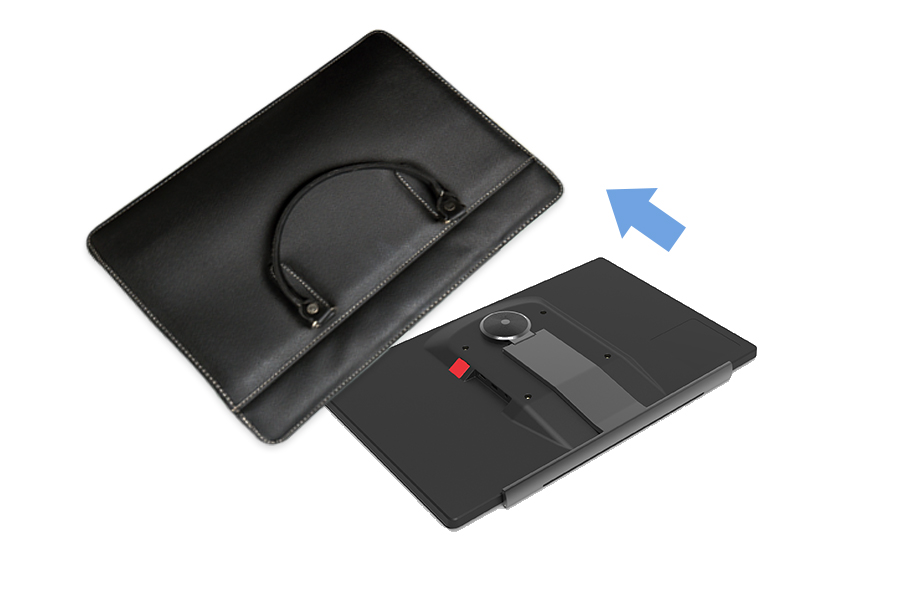

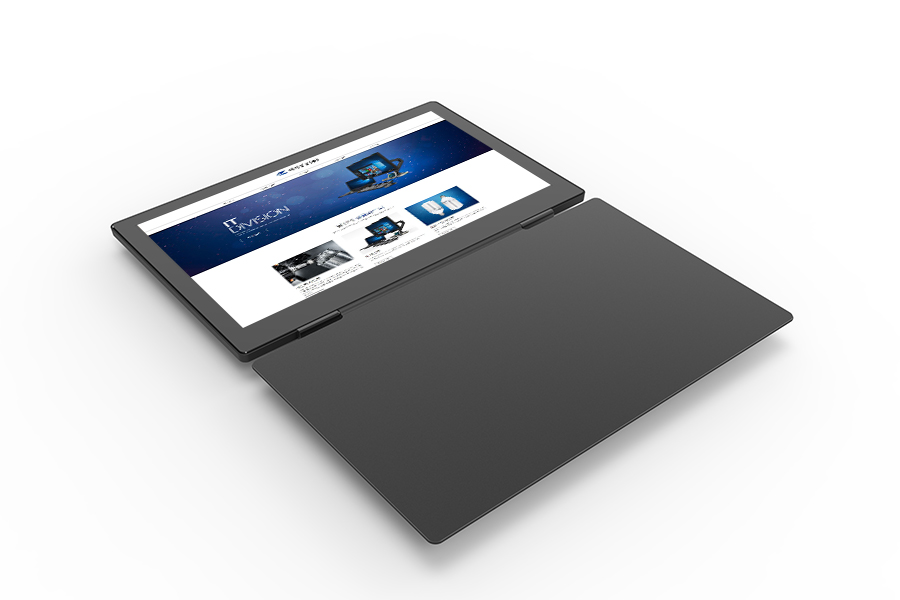

Folio stand
동영상
문서
웹
포토
멀티 모니터링
메신저
이메일
Technical Specifications
| Model | i116HB | i116HCT | i116FHB | i116FHCT |
|---|---|---|---|---|
| Display | 11.6inch(HD) | 11.6inch(FHD) | ||
| USB Monitor | O | O | O | O |
| Capacitive Touch screen | O | O | ||
| Resolution | 1366 x 768 | 1920 x 1080 | ||
| Brightness | 250cd/㎡ | 300cd/㎡ | ||
| Contrast Ratio | 500:1 | 1000:1 | ||
| View Angle (U/B/L/R) | 15/35/45/45 | 85/85/85/85 | Input Port | USB C type to A type(PC), DC Jack 5V(Optional) | VESA | 75mm x 75mm |

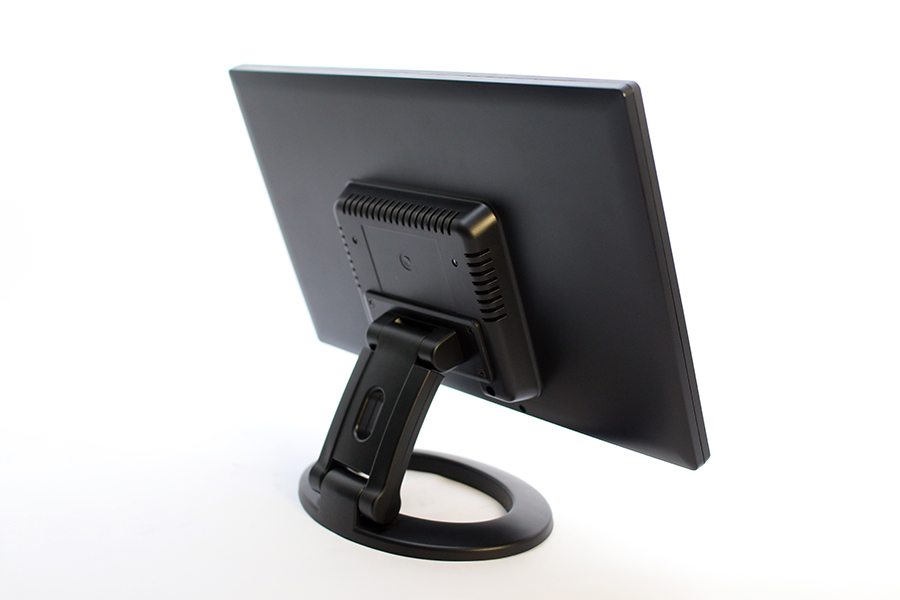

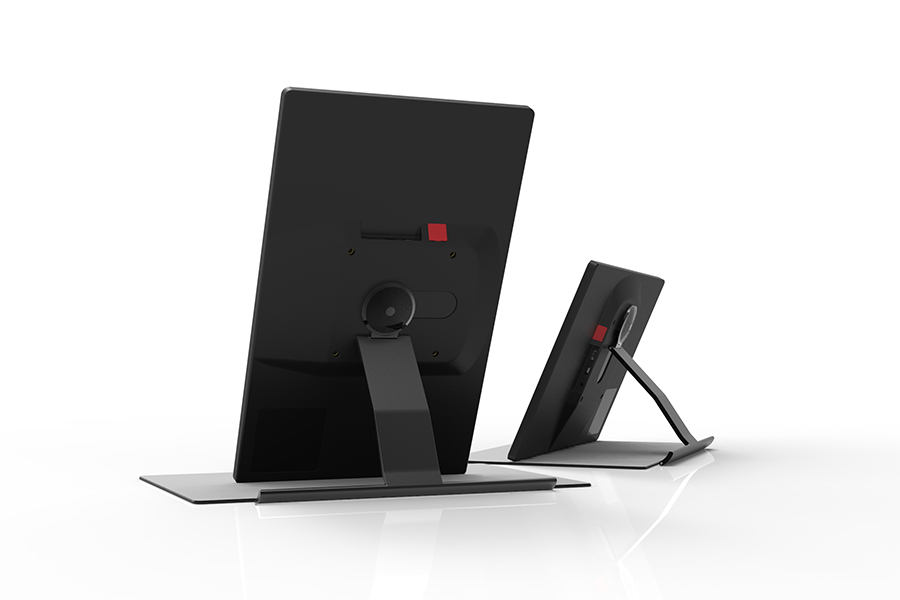

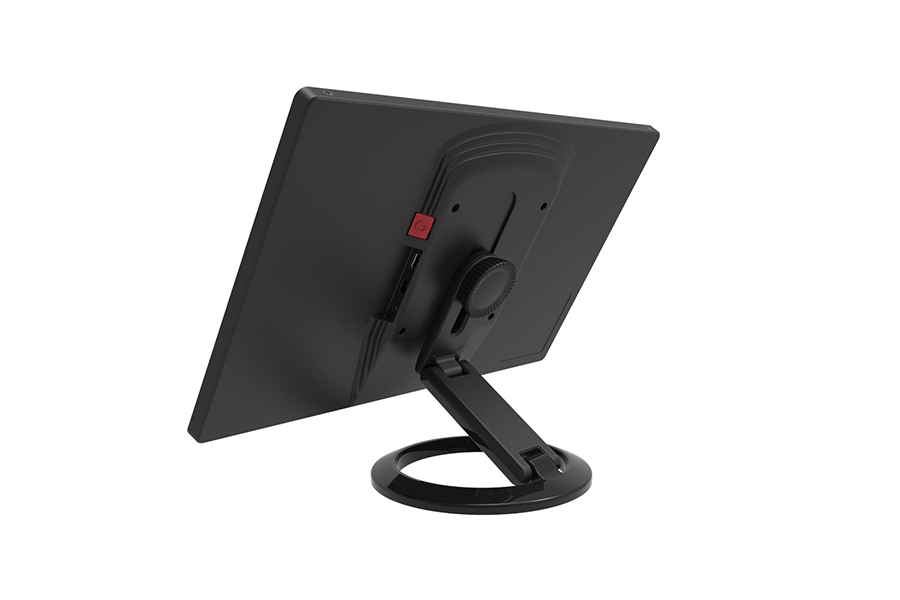

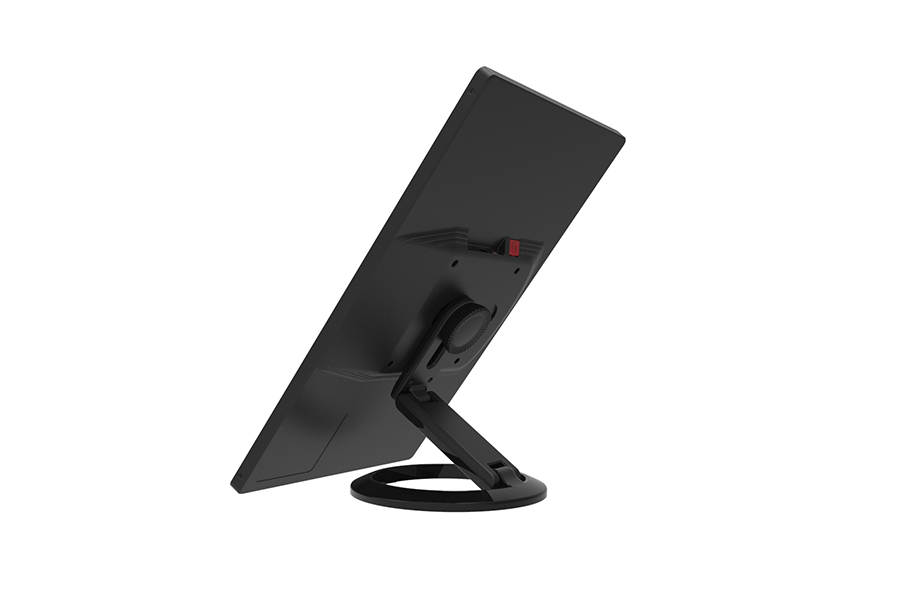

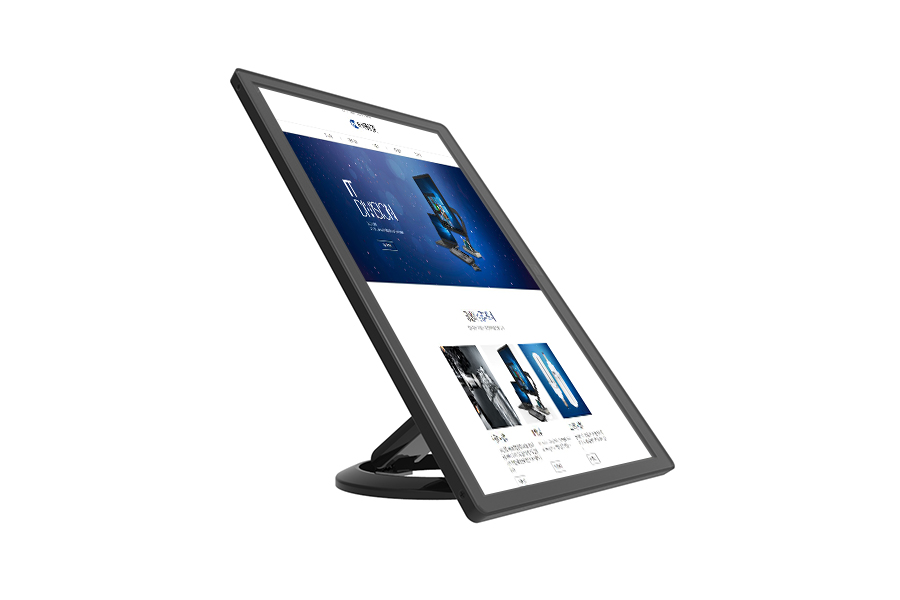

Universal stand
동영상
문서
웹
포토
멀티 모니터링
메신저
이메일
Technical Specifications
| Model | i116HBS | i116HCTS | i116FHBS | i116FHCTS |
|---|---|---|---|---|
| Display | 11.6inch(HD) | 11.6inch(FHD) | ||
| USB Monitor | O | O | O | O |
| Capacitive Touch screen | O | O | ||
| Resolution | 1366 x 768 | 1920 x 1080 | ||
| Brightness | 250cd/㎡ | 300cd/㎡ | ||
| Contrast Ratio | 500:1 | 1000:1 | ||
| View Angle (U/B/L/R) | 15/35/45/45 | 85/85/85/85 | Input Port | USB C type to A type(PC), DC Jack 5V(Optional) | VESA | 75mm x 75mm |
Monitor Characteristics
Compatible Models & Accesories
Flex Mounting Aram
USB Cable-S (3m, 4m, 5m)
USB Cable-R (3m, 4m, 5m)

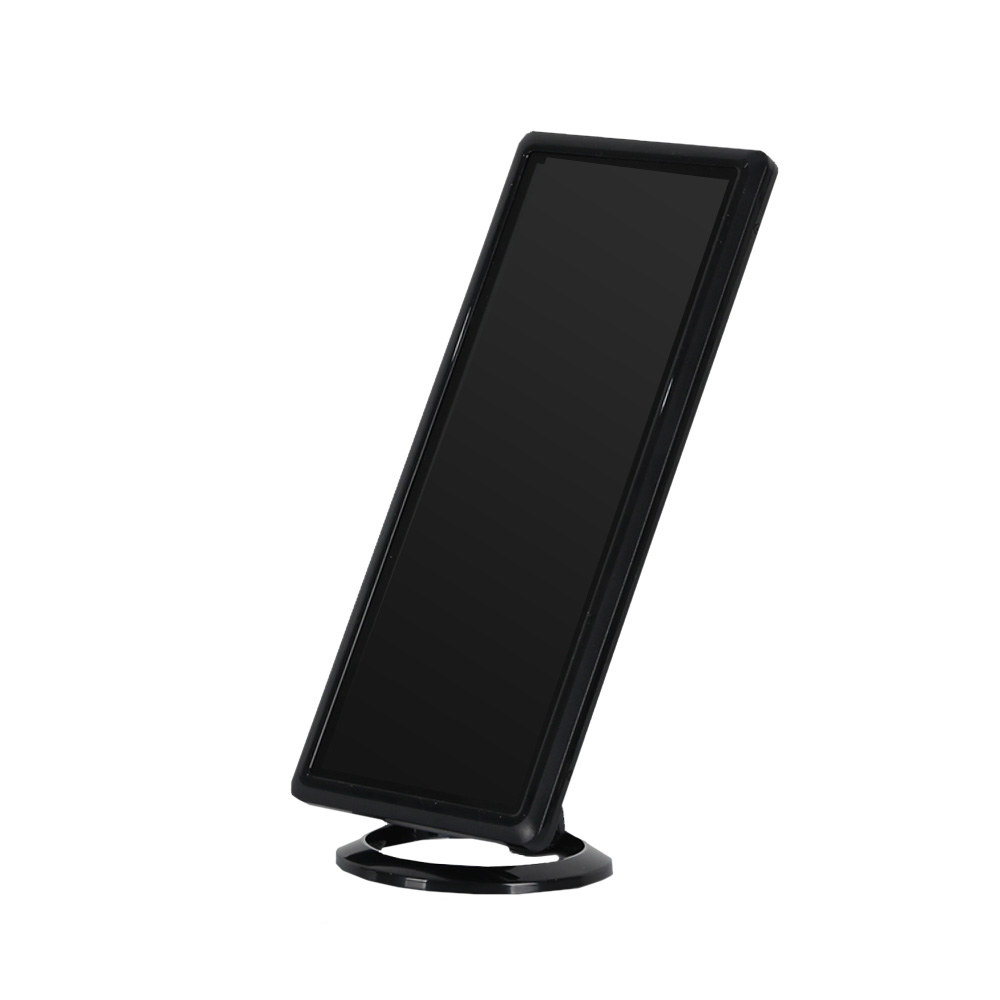

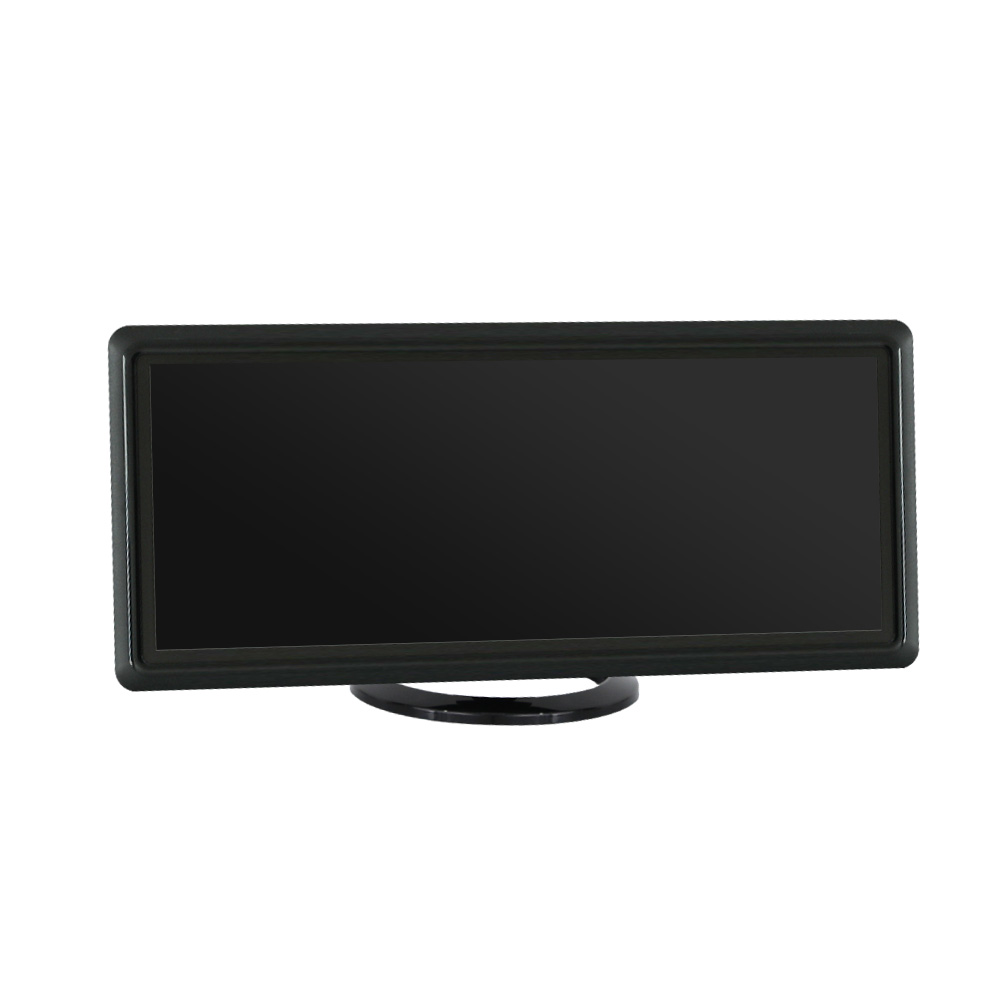

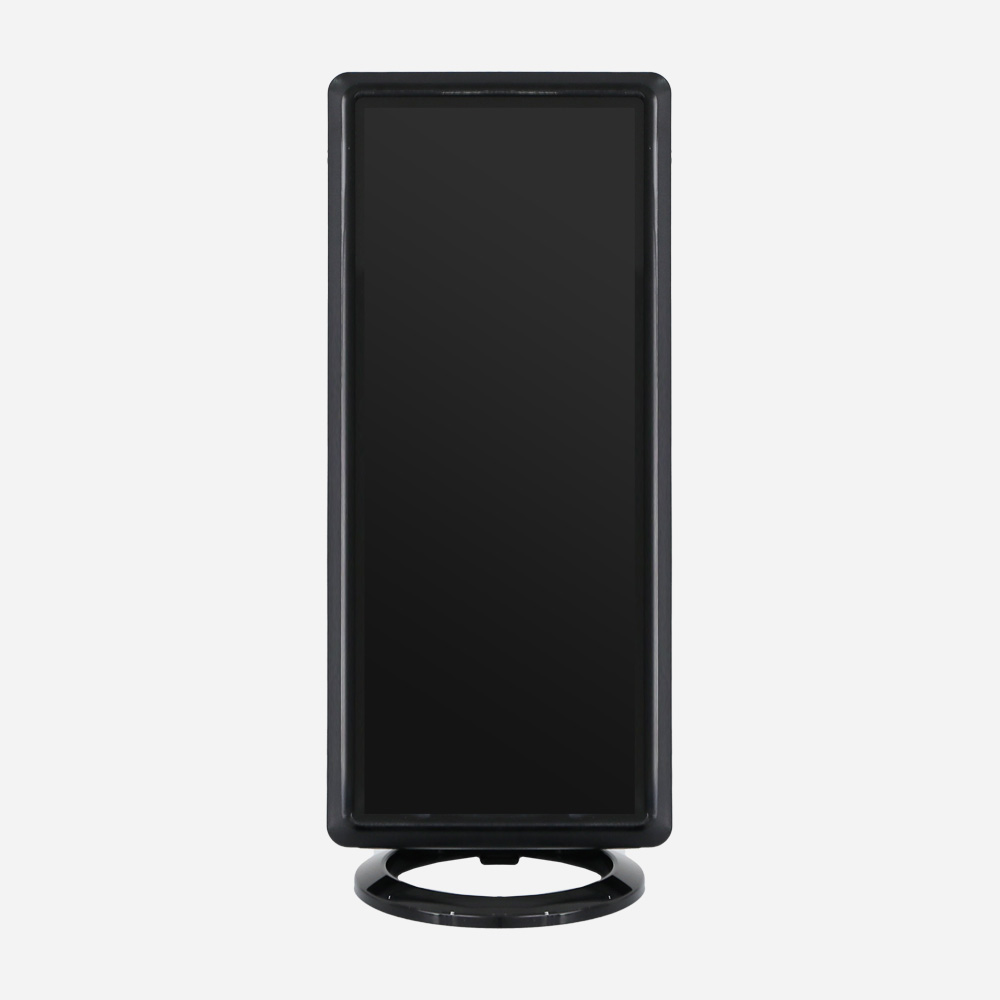

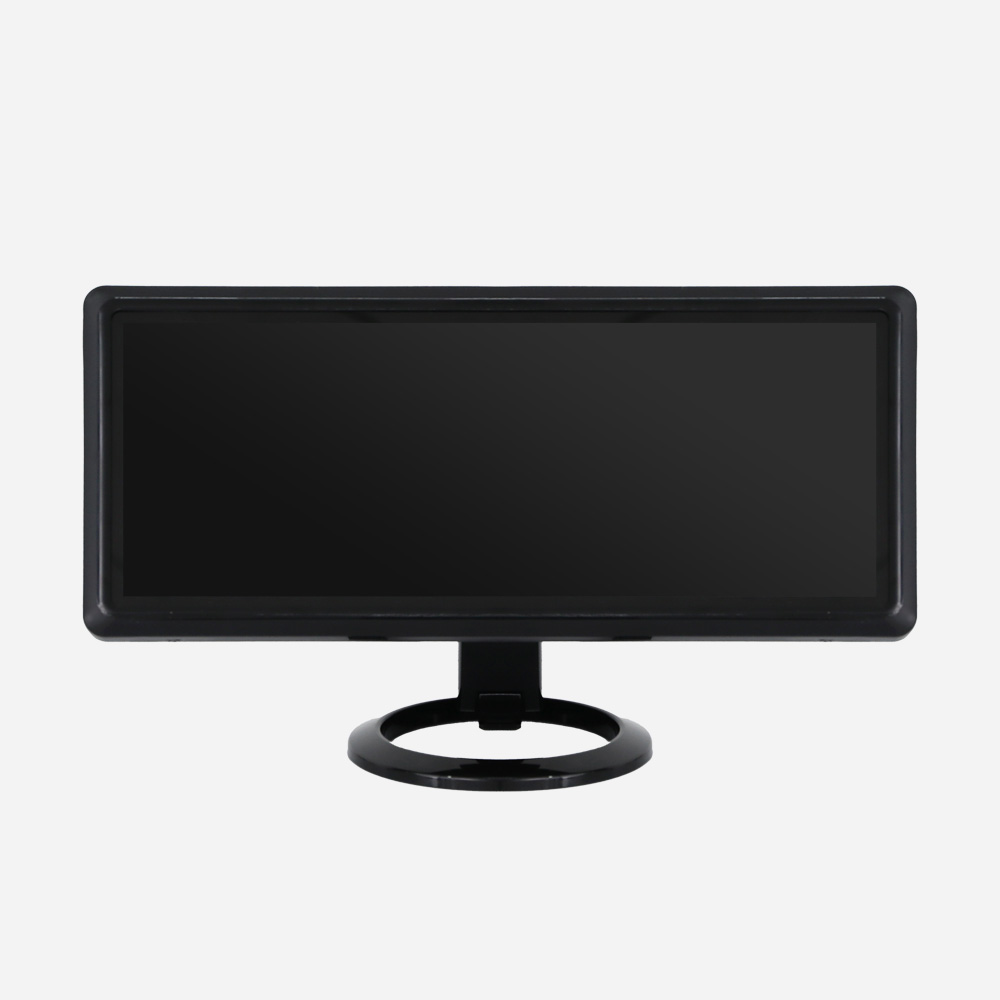

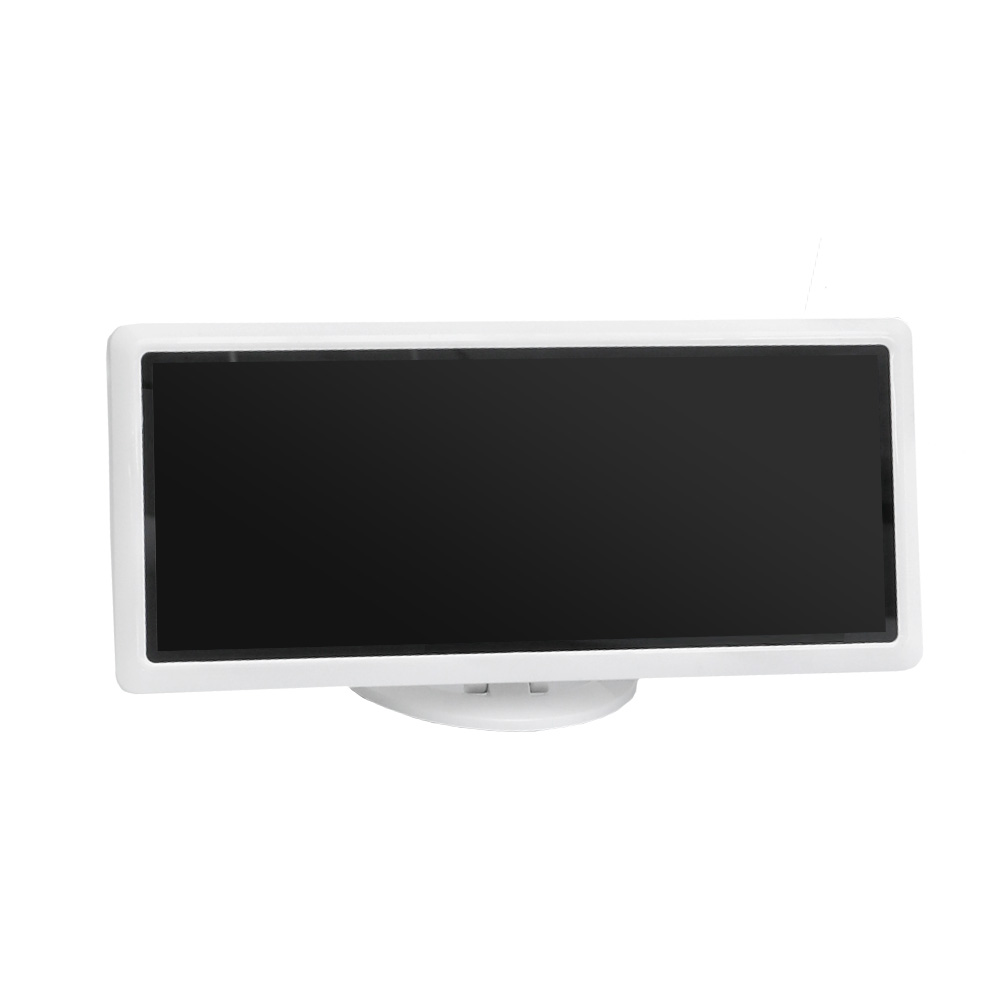

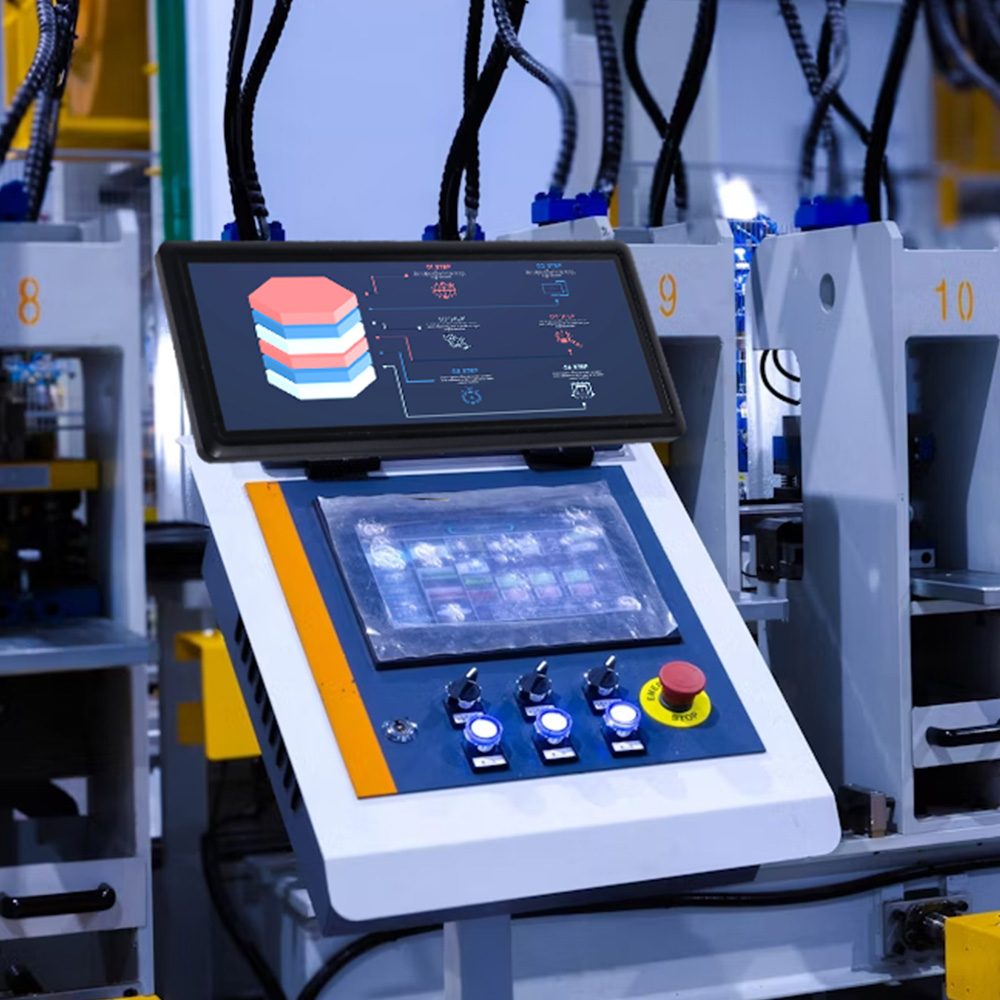

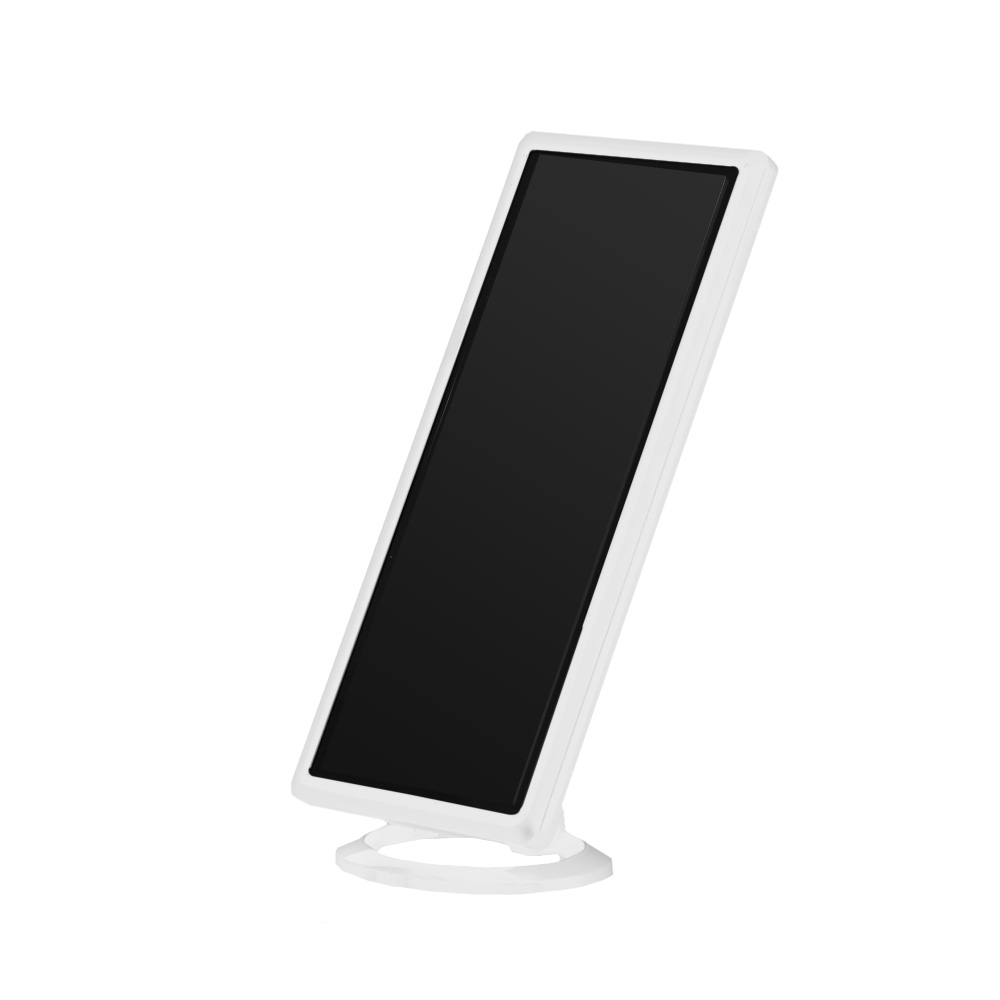

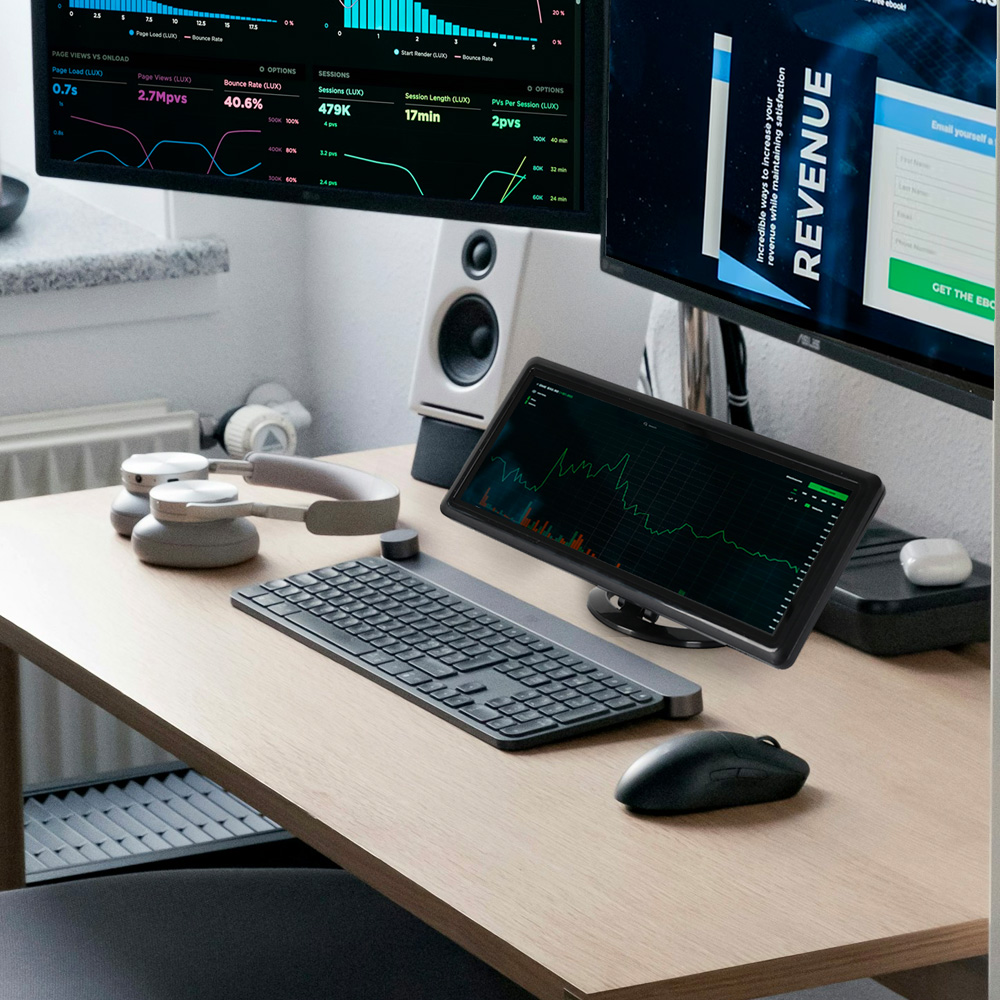

12.3inch Ultra wide Monitor
Technical Specifications
| Model | i123FHTS | i123FHBS | i123FHTS-W | i123FHBS-W |
|---|---|---|---|---|
| Touch Screen | O | X | O | X |
| Color | Black | Black | White | White |
| Universal Stand | O | O | O | O |
| Active Screen Size | 12.3" diagonal, (312.42mm) | |||
| Resolution | 1920 x RGB x 720 (8:3) | |||
| Color depth | 8bit, 16.7M colors | |||
| Brightness | Default-200cd/M², Maximum-400cd/m² | |||
| Contrast ratio | 800:1 | |||
| Viewing angle | 178 degree : 89/89/89/89 degree (IPS) | |||
| Input connector type | USB-C(DP Alt mode) x 1, USB-C(PD) x 1, Micro HDMI x 1 | |||
| Power Consumption | 5W, Max 9W | |||
| Product weight | Net weight : 765g, Gross weight : 930g | |||
Monitor Characteristics

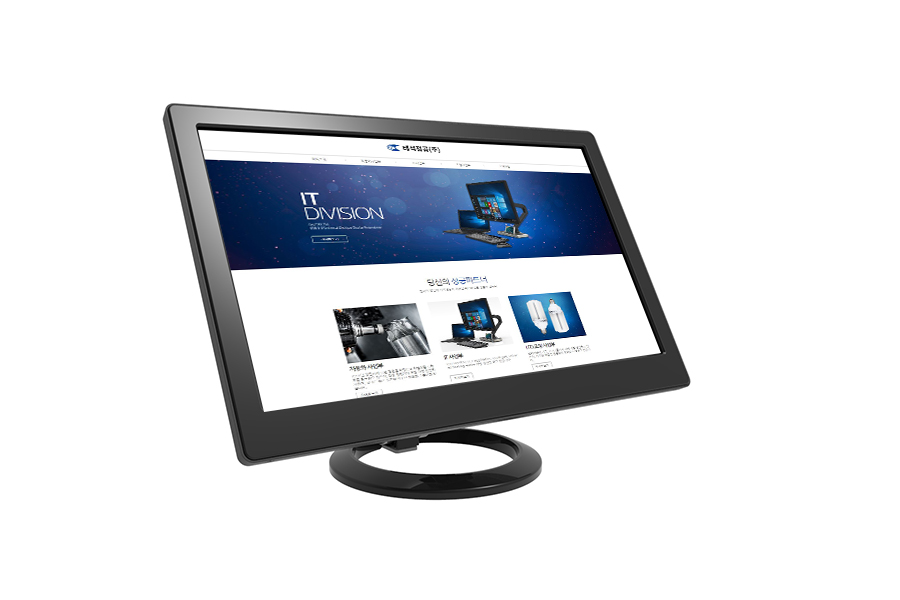

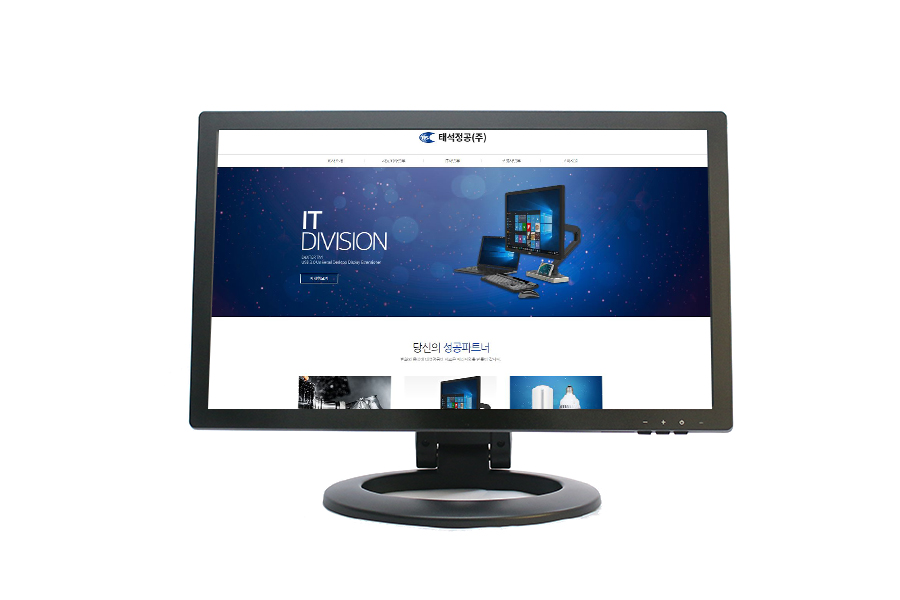

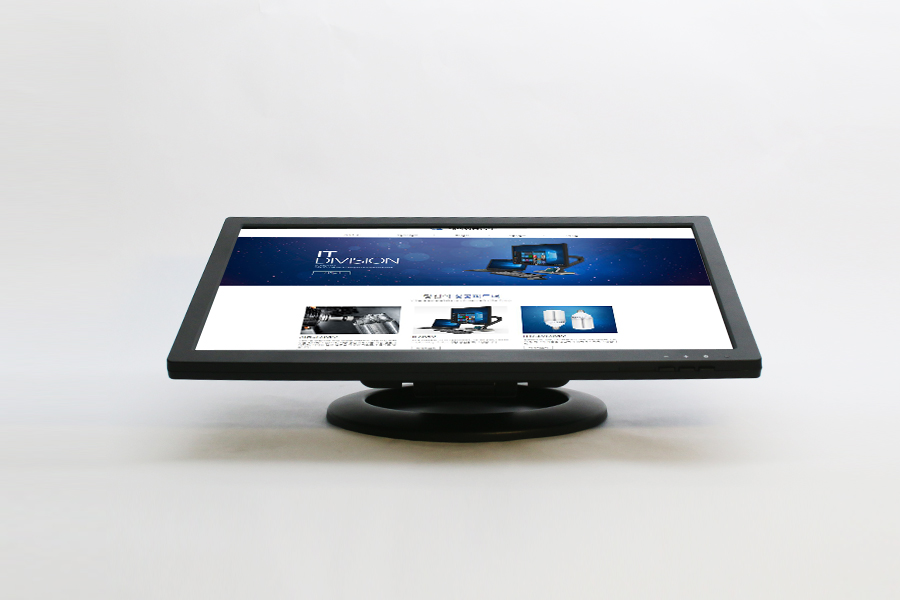

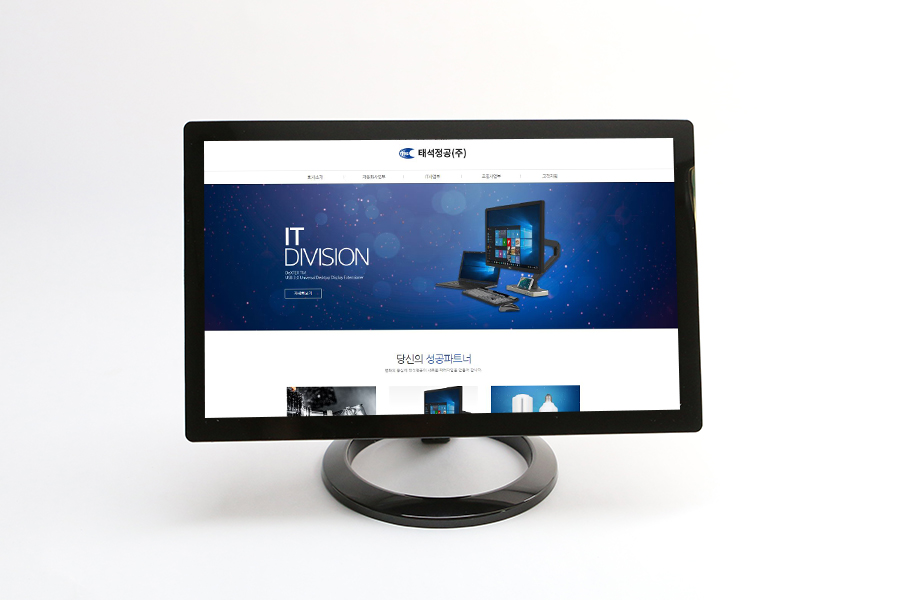

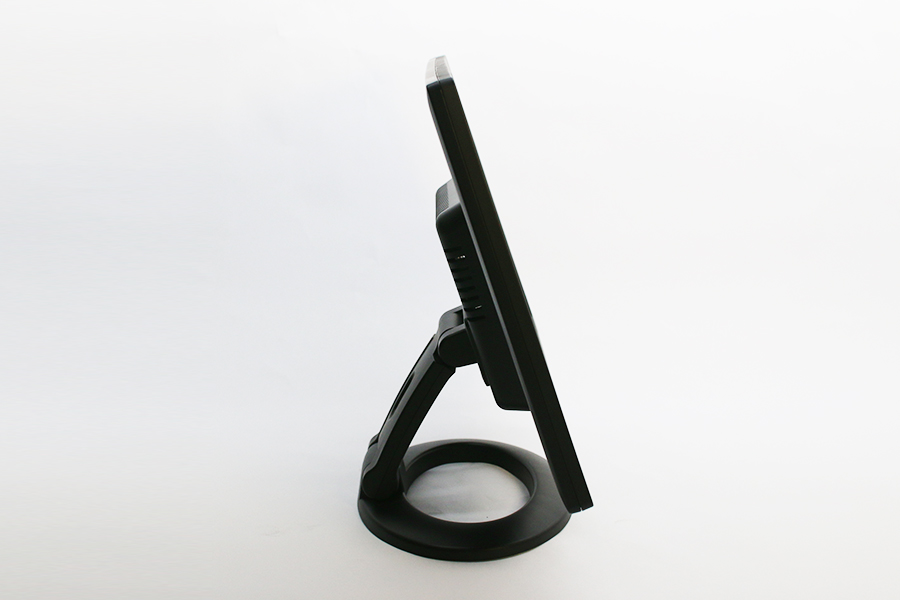

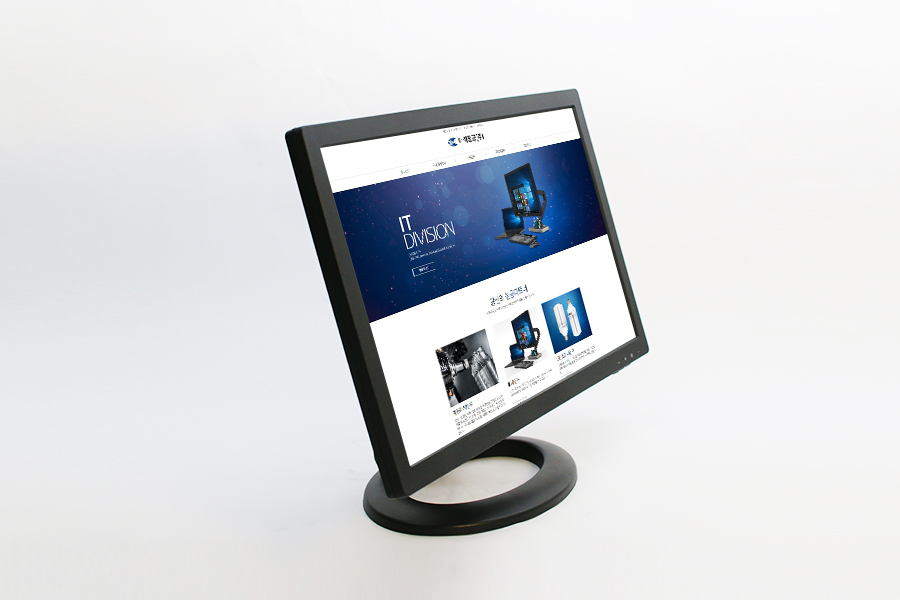

15.6inch USB Monitor
동영상
문서
웹
포토
멀티 모니터링
메신저
이메일
Technical Specifications
| Model | i156BS |
|---|---|
| USB Monitor | O |
| Touch screen | X |
| Screen diagonal | 15.6inch wide |
| Display Resolution | 1366 x 768(WVGA) |
| Brightness | 200cd/㎡ |
| Contrast Ratio | 400:1 |
| Response time | 16ms |
| Signal Input | USB Mini 5-pin B type |
| Connections | High Speed USB2.0 |
| Power Consumption | USB Power(5V),3.3~4.9W |
Monitor Characteristics
Compatible Models & Accesories
Flex Mounting Aram
VESA Bracket
USB Cable-S (3m, 4m, 5m)
USB Cable-R (3m, 4m, 5m)

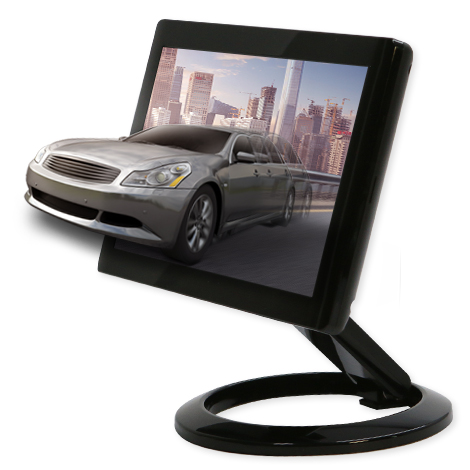

7inch 3D USB Monitor
무안경 3D 모니터(Glasses-free 3D Display) – Parallax Barrier type

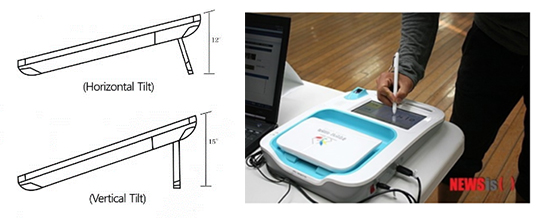

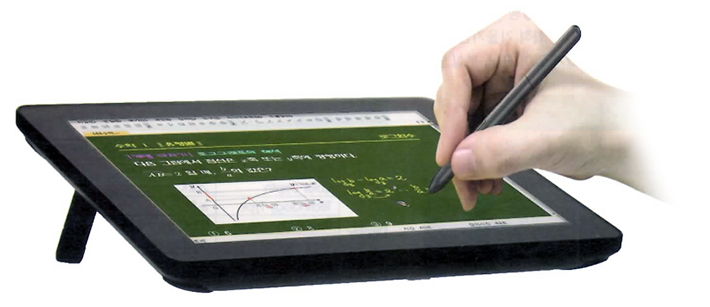

9.7inch Pen Touch Tablet USB Monitor
Touch : EMR(Electromagnetic Resonance Method)
Pen : Battery-less/Cordless(무선/무건전지)
ㆍe-Paperless
ㆍe-Learning
ㆍe-Sign
ㆍU-Paperless

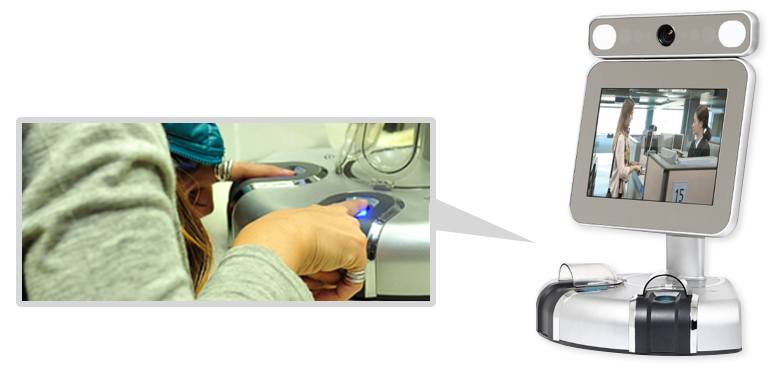

9.7inch Multi-Biometrics Acquisition Station
OEM-Smart Core Inc, Korea
( http://www.smartcoreinc.com )
10.1inch Capacitive Multi Touchscreen
ODM : MutimediaLink
( http://www.multimedia-link.com )
10.1inch Capacitive Multi Touchscreen presents the world’s first Multi Touchscreen USB monitor with capacitive touchscreen!!!

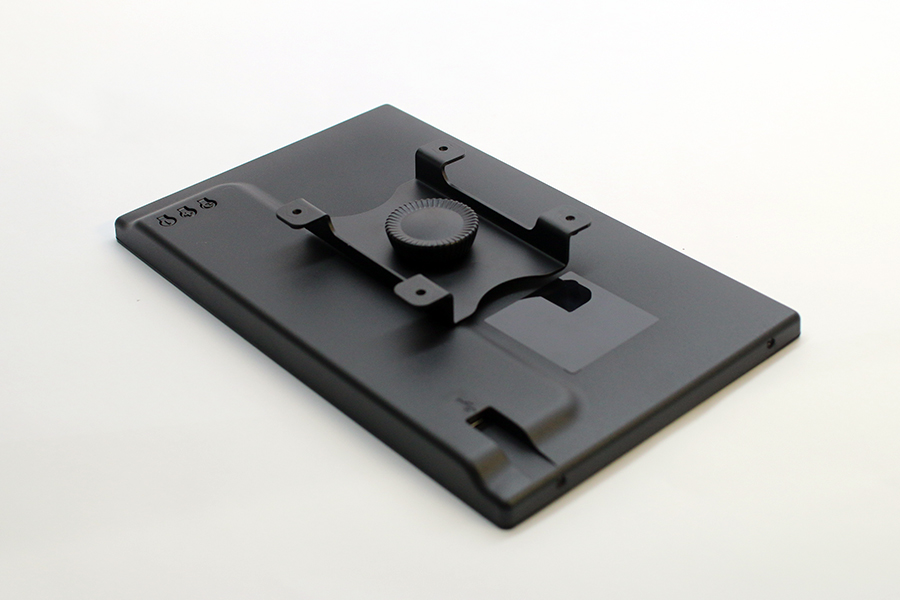

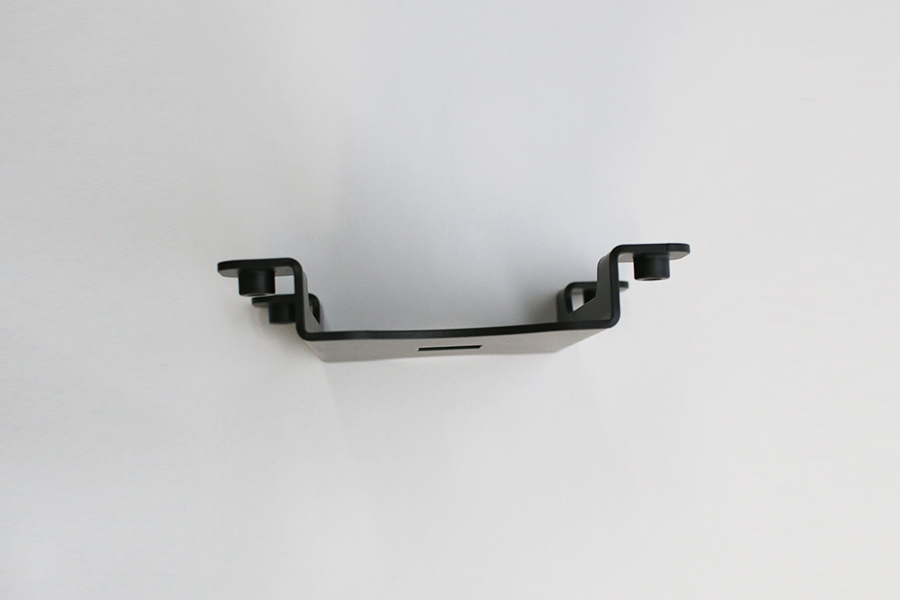

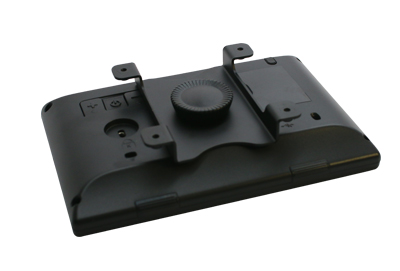

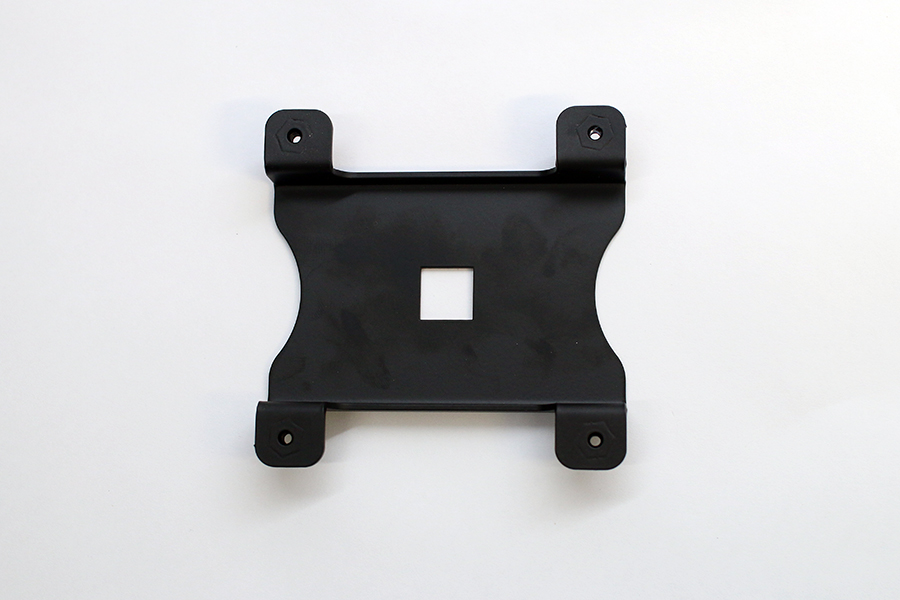

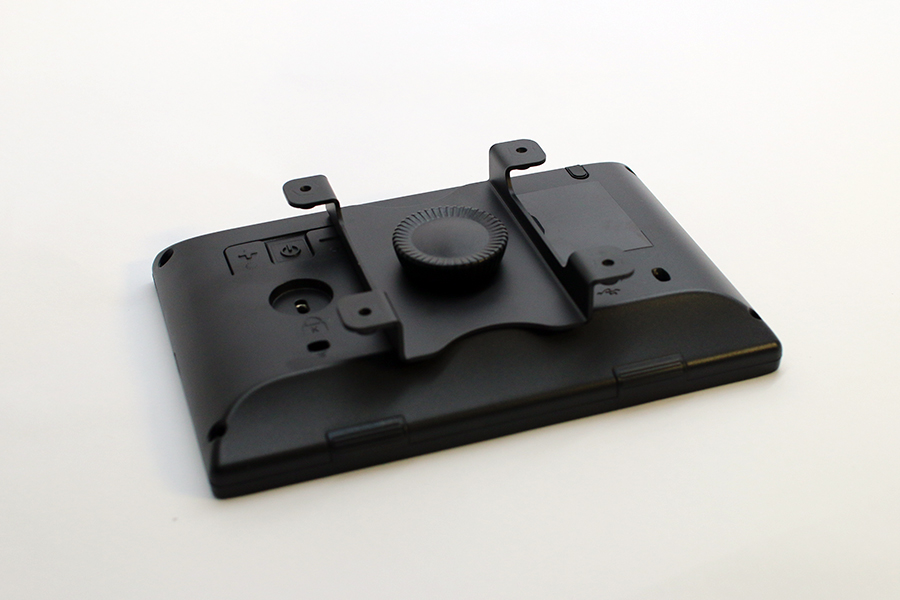

VESA Bracket
iUVB75는 USB Monitor 뒷면에 쉽게 조립이 가능하며, VESA 75mm x75mm Hole활용 할 수 있습니다.
Technical Specifications
ㆍVESA Hole: 75mm x 75mm
ㆍCompatible Model:7inch-i07BS, i07TS / 10.1inch-i101BS, i101RT, i101CT

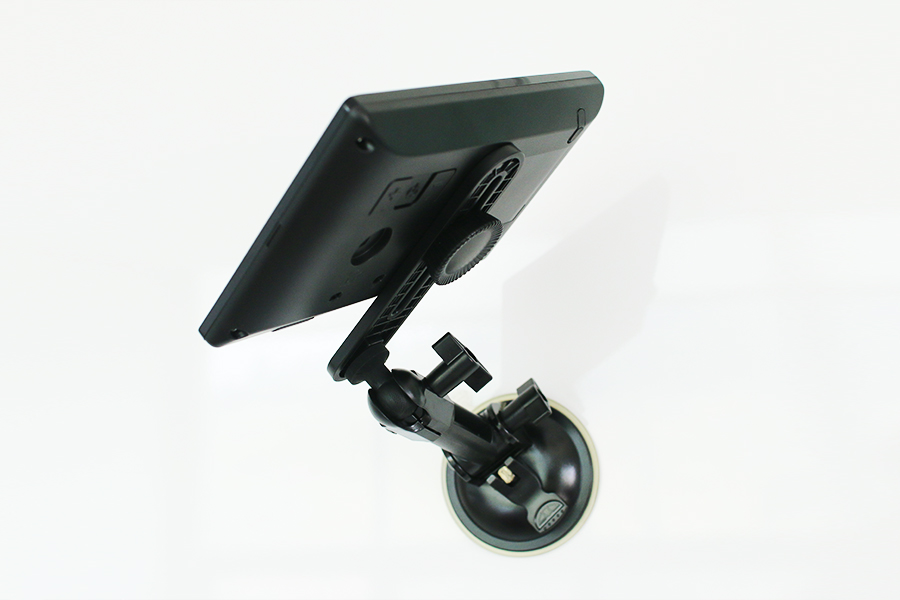

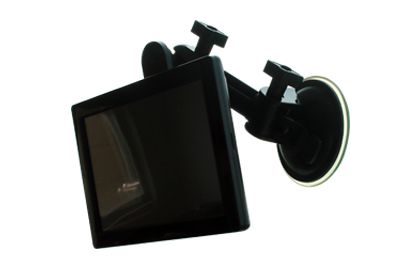

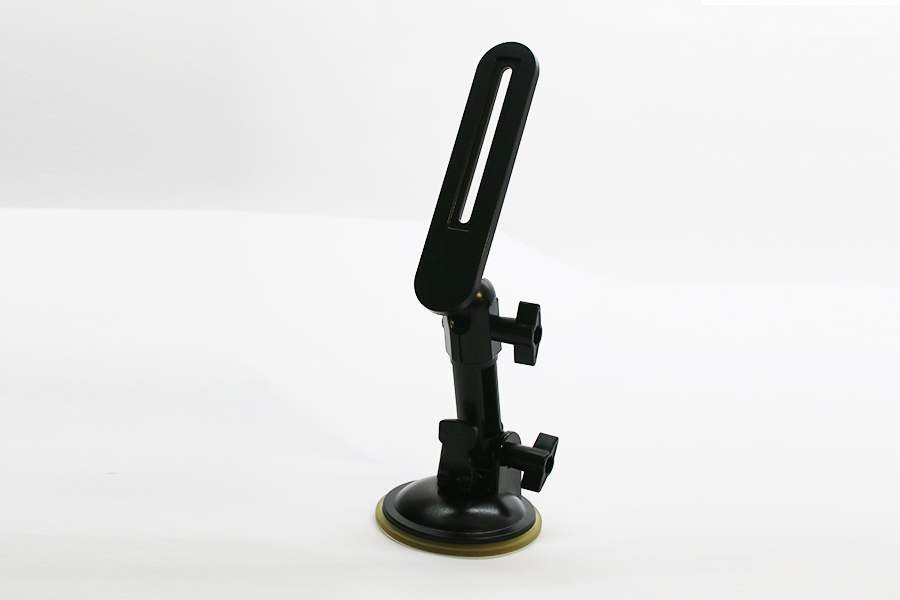

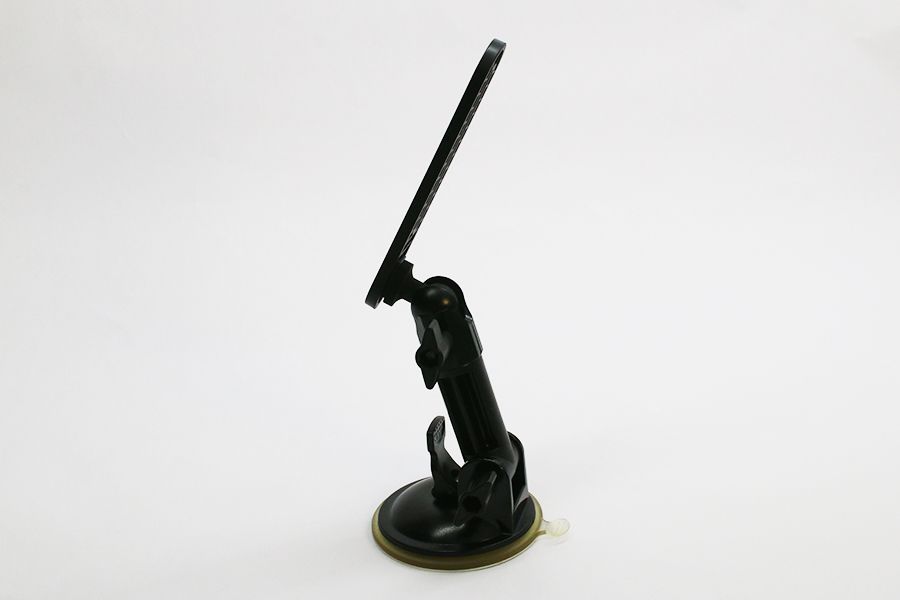

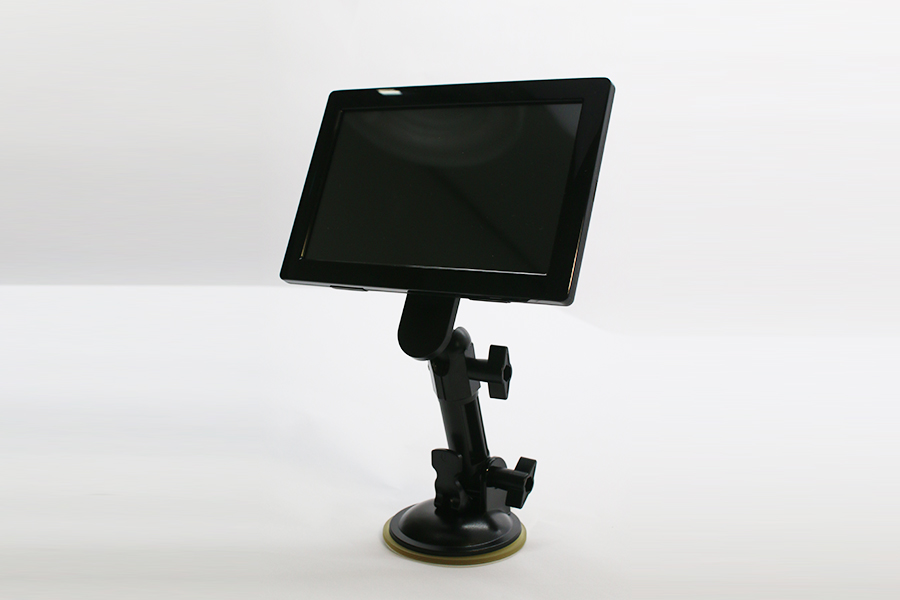

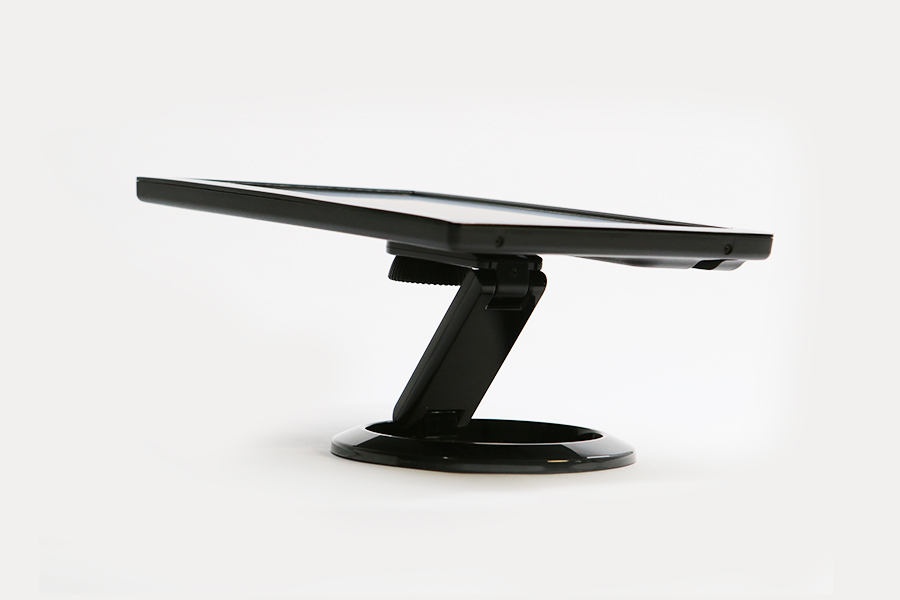

Flex Mounting Arm
iUF는 듀얼 힌지로 구성되어 각도 조절이 자유롭고, Suction Cup base mount로 원하는 곳에 고정하여 사용 할 수 있습니다.
Technical Specifications
ㆍDouble Hinged Design & Suction Cup Base

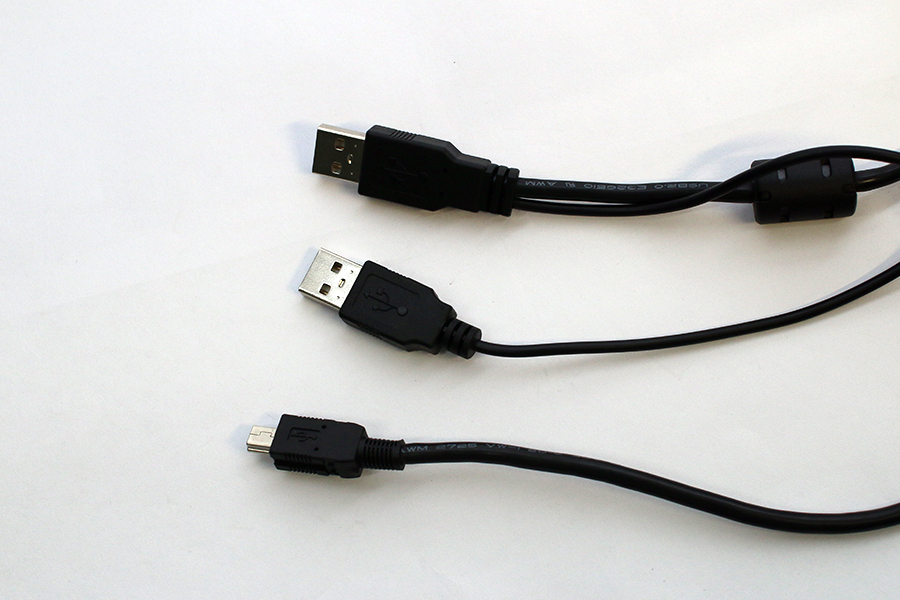

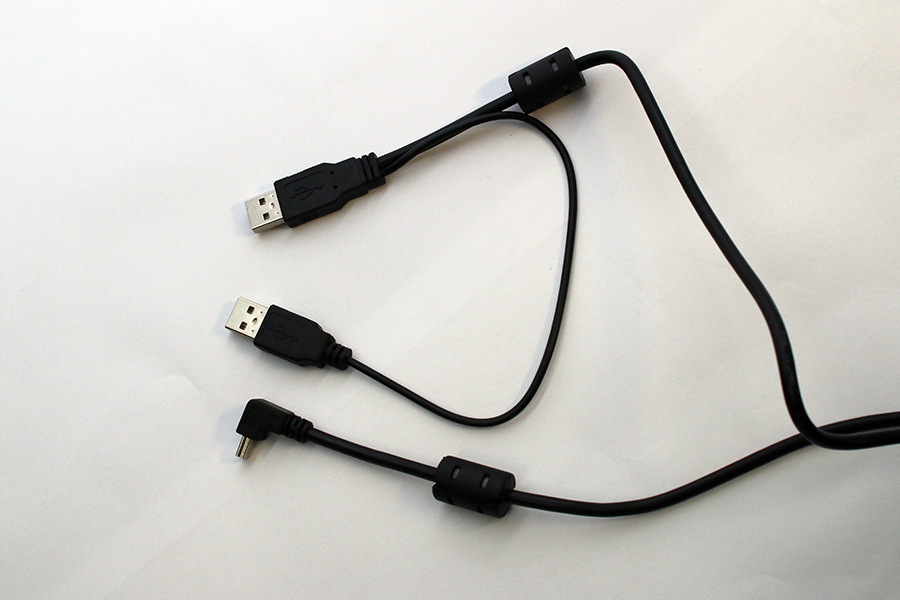

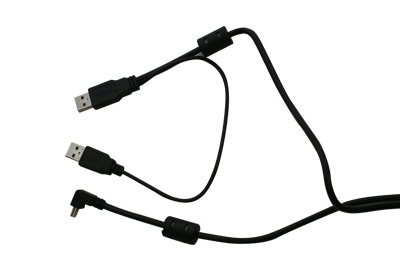

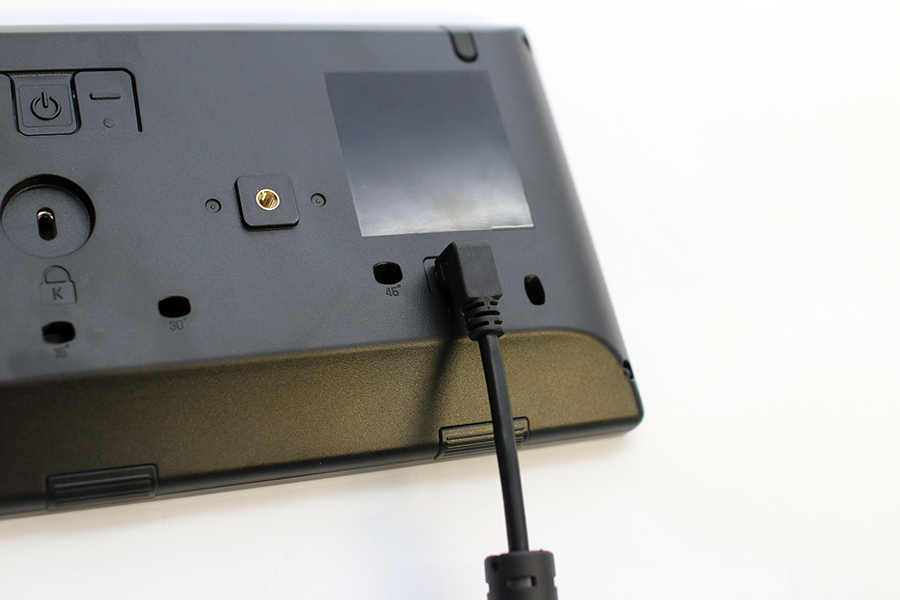

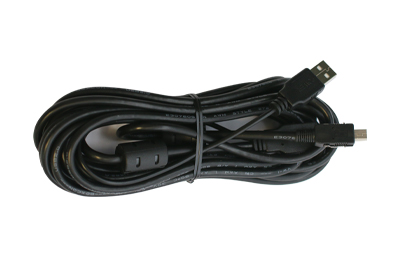

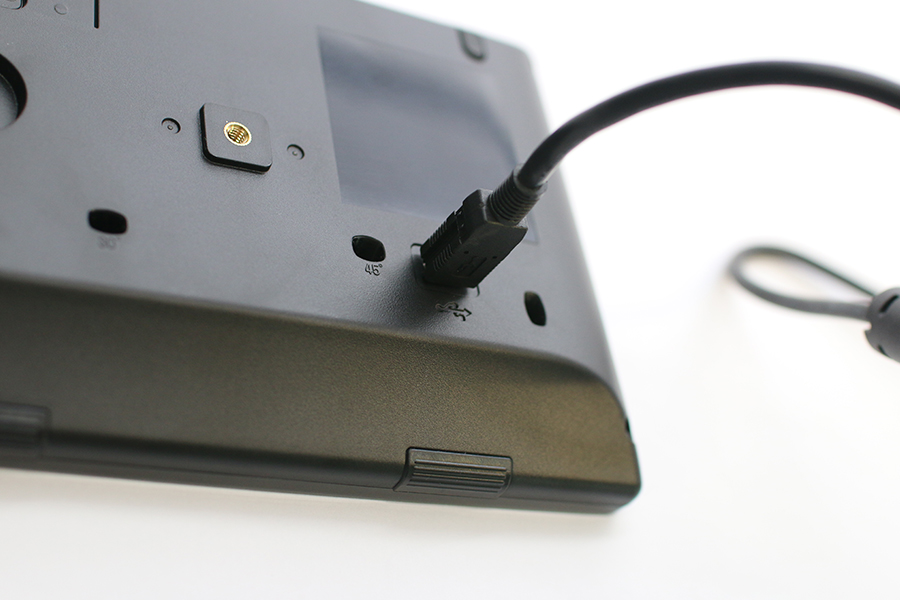

USB Cable
USB Monitor를 위해 특별히 설계 되었습니다. 다른 USB Cable 사용시 전원/데이터의 강도가 약해져 USB Monitor 화면이 안 나올수 있습니다.
이 케이블을 이용해 PC에서 더 멀리 USB Monitor를 사용 할 수 있습니다. .(기본 제공 USB Cable :1.5m)
USB Cable-S Technical Specifications
ㆍStraight type
ㆍ3m, 4m, 5m
USB Cable-R Technical Specifications
ㆍRight Angle type
ㆍ3m, 4m, 5m
